Oil free

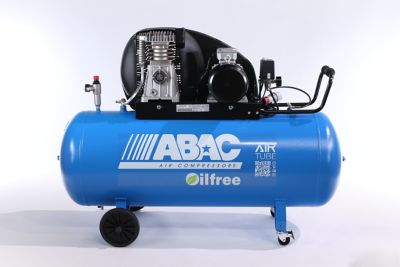

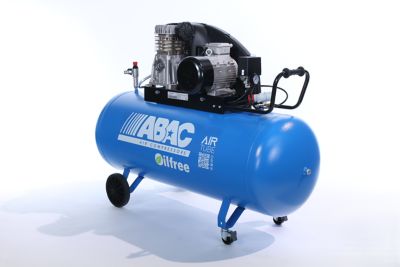

4116028713 - EXP A39B-0 270 CT3
• Max Pressure (bar) : 10
• Vessel size (lt) : 270
• Air Displacement (l/min) : 393
• Motor (hp) : 3
Product Description
Abac EXpert compressors are equipped with advanced technology to meet the rigorous demands of various industries. The range provides a robust solution that professionals can rely on.
The EXpert compressors are designed by incorporating all the available accessories for single-stage compressors today. They offer great stability, thanks to the double front swivel wheel, and the new handle makes it easier to move the compressor around your site. The outlet filter also protects even the most expensive tools.
Design features:
- Robust and ergonomic handle with rubber protection
- Air interface equipped with filtration or versatile double exit
- 200mm rear wheels designed for high resistance, plus 2x pivoting front wheels with brake
Technical features:
- Power range: from 2 to 5.5 horsepower
- Technology: oilfree or lubricated single and double stage pump with aftercooler
- Power supply: 230/400 V – 1 or 3 Phases – 50/60 Hz
- Air delivery: equipped with filtration or versatile double exit
Product information
Specification | Value |
---|---|
Weight | 116000 GRM |
Technical details
Specification | Value |
---|---|
Max Pressure (Bar) | 10 Bar |
Max Pressure (Psi) | 145 PSI |
Pump speed | 1050 Rpm |
Vessel size (lt) | 270 Liter |
Vessel size (gal) | 59.4 Gal |
Configuration | Tank Mounted |
Air Displacement (l/min) | 393 l/min |
Air Displacement (cfm) | 13.3 Cfm |
Lubrication | Oil-free |
Pump Element | PAT38A0 |
Motor (hp) | 3 Hp |
Motor (kw) | 2.2 kW |
Supply voltage | 400 V |
Frequency | 50 Hz |
Number of phases | 3 |
