Pro line
4116019761 - B 5900B/270 CT 5 5 V400 CE
B 5900B/270 CT 5 5 V400 CE
• Max Pressure (bar) : 11
• Vessel size (lt) : 270
• Air Displacement (l/min) : 570
• Motor (hp) : 5.5
Images may differ from the actual product
Images may differ from the actual product
Product Description

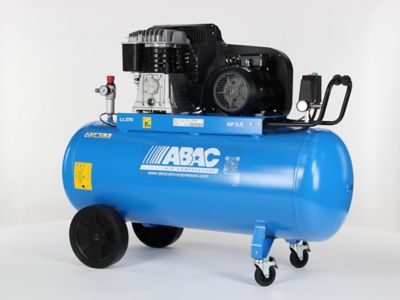

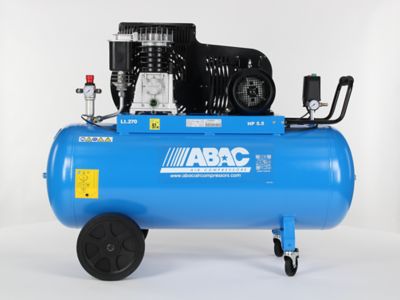

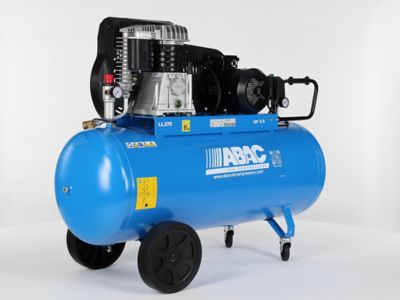

The B5900 270 LT - Pro Line is a two stage belt drive compressor equipped with a 270 liters tank and it is a reliable option thanks to its strong heavy-duty components.
Product information
| Specification | Value |
|---|---|
| Weight | 142500 GRM |
Technical details
| Specification | Value |
|---|---|
| Max Pressure (Bar) | 11 Bar |
| Max Pressure (Psi) | 160 PSI |
| Pump speed | 1256 Rpm |
| Vessel size (lt) | 270 Liter |
| Vessel size (gal) | 71 Gal |
| Configuration | Mobile |
| Air Displacement (l/min) | 570 l/min |
| Air Displacement (cfm) | 20.1 Cfm |
| Lubrication | Oil Lubricated |
| Oil capacity | 1.5 Liter |
| Pump Element | B5900B |
| Motor (hp) | 5.5 Hp |
| Motor (kw) | 4.1 kW |
| Supply voltage | 400 V |
| Frequency | 50 Hz |
| Number of phases | 3 |
| Noise Level (LPA) | 75 dB(A) |
| Noise Level (LWA) | 95 dB(A) |
