Belt Driven 1 Stage
4116023712
VCF2/100 CM3

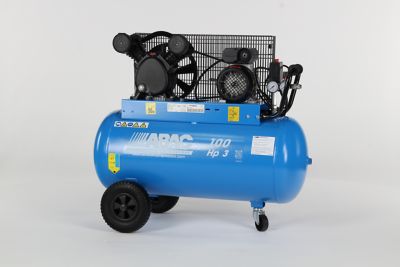

Images may differ from the actual product
• Max Pressure (bar) : 10
• Vessel size (l) : 100
• FAD @Max pressure (l/min) : 330
• Motor (hp) : 2
• Max Pressure (bar) : 10
• Vessel size (l) : 100
• FAD @Max pressure (l/min) : 330
• Motor (hp) : 2
| Specification | Value |
|---|---|
| Weight | 58.5 KGM |
| Specification | Value |
|---|---|
| Weight | 58.5 KGM |
| Specification | Value |
|---|---|
| Performance data | |
| EAN Code | 8024900706567 |
| Max Pressure (Bar) | 10 Bar |
| Max Pressure (Psi) | 435 PSI |
| Pump speed | 1250 Rpm |
| Vessel size (lt) | 100 Liter |
| Vessel size (gal) | 26 Gal |
| Configuration | Mobile |
| Air Displacement (l/min) | 321 l/min |
| Air Displacement (cfm) | 11,235 Cfm |
| Lubrication | Oil Lubricated |
| Pump Element | VCF2 |
| Motor (hp) | 2 Hp |
| Motor (kw) | 2.2 kW |
| Supply voltage | 230 V |
| Frequency | 50 Hz |
| Number of phases | 1 |
| Noise Level (LPA) | 76 dB(A) |
| Noise Level (LWA) | 96 dB(A) |
| Part number | Max Pressure (Bar) | Vessel size (lt) | Air Displacement (l/min) | Number of phases | Motor (hp) | Price and availability | ||
|---|---|---|---|---|---|---|---|---|
| Part number | Max Pressure (Bar) | Vessel size (lt) | Air Displacement (l/min) | Number of phases | Motor (hp) | Price and availability | ||
4116021387 VCF3/100 CM3 ABAC | 9 Bar | 100 Liter | 350 l/min | 1 | 3 Hp | - | ||
4116021387 VCF3/100 CM3 ABAC | 9 Bar | 100 Liter | 350 l/min | 1 | 3 Hp | - | ||
4116021397 VCF3/150 CM3 BLU ABAC S/ARROT. | 9 Bar | 150 Liter | 350 l/min | 1 | 3 Hp | - | ||
4116021397 VCF3/150 CM3 BLU ABAC S/ARROT. | 9 Bar | 150 Liter | 350 l/min | 1 | 3 Hp | - | ||
4116023705 VCF3/200 CM3 | 10 Bar | 200 Liter | 350 l/min | 1 | 3 Hp | - | ||
4116023705 VCF3/200 CM3 | 10 Bar | 200 Liter | 350 l/min | 1 | 3 Hp | - | ||
4116023712 VCF2/100 CM3 | 10 Bar | 100 Liter | 321 l/min | 1 | 2 Hp | - | ||
4116023712 VCF2/100 CM3 | 10 Bar | 100 Liter | 321 l/min | 1 | 2 Hp | - |
